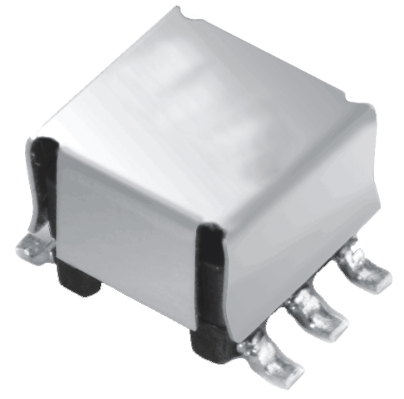

EP Gate Drive Transformers

1、Core material Ferrite

2、Terminations RoHS compliant tin-silver over tin over nickel over phos

bronze. Other terminations available at additional cost.

3、Weight 535 – 615 mg

4、Ambient temperature –40°C to +125°C

5、Storage temperature Component: –40°C to +125°C.

6、Tape and reel packaging: –40°C to +80°C

7、Resistance to soldering heat Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

8、Moisture Sensitivity Level (MSL) 1 (unlimited floor life at<30°C /

85% relative humidity)
